GMT / Low Pressure Injection Molds

• GMT(Glass Fiber Mat Reinforced Thermoplastics) mold is a mold process which developed to replace existing steel parts with GMT parts in order to reduce the price and light the weight of passenger cars and commercial vehicles.
• The typical products are Back Beam of passenger car, Sheet Back of chair and Under Cover of engine.
• Putting the material into the mold after heated to about 170 ℃. Then, it is compressed by press machine to make the shape.
• As a merit, it is possible to insert glass mat or honeycomb sheet woven with resin such as P.P., so that high-rigidity functional parts can be produced at a low cost due to simplification of the process.

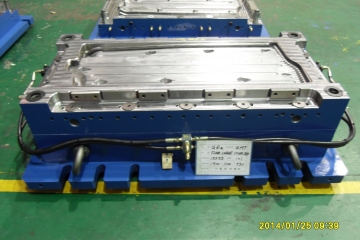

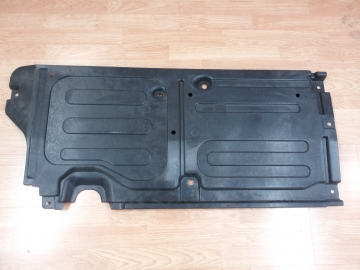

Part name	Engine Under Cover	Part Material	GMT
Method	Compression Mold	Mold Material	KP-4
Machine	Press 1,000 ton	Lead- time	30 ~ 50 days
Note

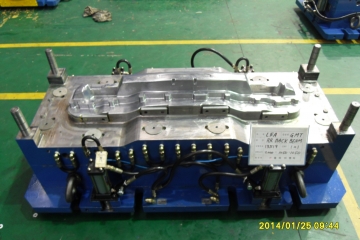

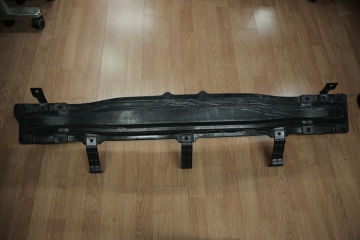

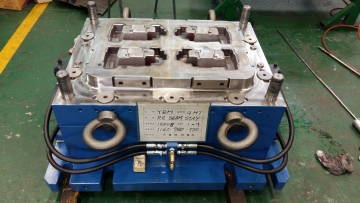

Part name	Back Beam	Part Material	PP + GF
Method	Compression Mold	Mold Material	KP-4
Machine	Press 500 ton	Lead- time	30 ~ 50 days
Note

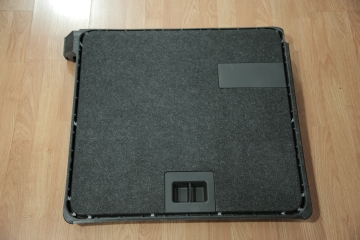

Part name	Seat Back	Part Material	GMT
Method	Compression Mold	Mold Material	KP-4
Machine	Press 500 ton	Lead- time	35 ~ 70 days
Note

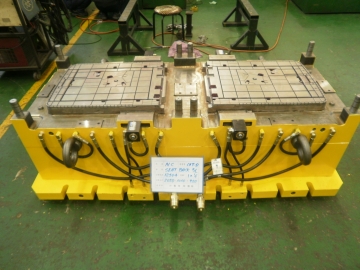

Part name	Battery Tray	Part Material	GMT
Method	Compression Mold	Mold Material	KP-4M(P-20)
Machine	Press 1,000 ton	Lead- time	45 ~ 90 days
Note

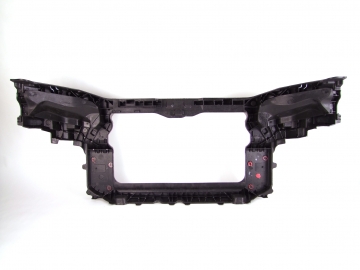

Part name	Fem Carrier	Part Material	GMT
Method	Compression Mold	Mold Material	KP-4
Machine	Press 1,500 ton	Lead- time	60 ~ 90 days
Note

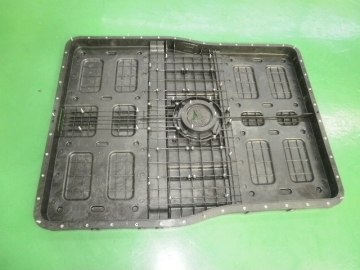

Part name	Spare Tire Well	Part Material	GMT
Method	Compression Mold	Mold Material	KP-4
Machine	Press 2,000 ton	Lead- time	60 ~ 80 days
Note

Part name	Electric Battery Case	Part Material	GMT / SMC
Method	Compression Mold	Mold Material	KP-4
Machine	Press 2,000 ton	Lead- time	60 ~ 90 days
Note

Part name	Engine Cover	Part Material	GMT
Method	Compression Mold	Mold Material	KP-1
Machine	Press 500 ton	Lead- time	30 ~ 50 days
Note
