STEEL PLATE DESCALING MACHINE

  • It is a device to remove scales which attached on the steel plate and beam by using roller conveyor. Unmanned automation facility for coating and drying when producing such as ship block or large steel structure (steel plate, H-beam, angle and etc.)

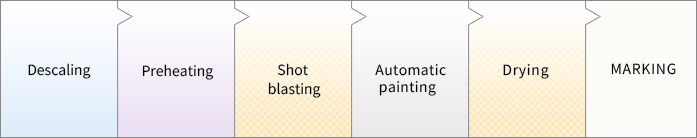

  • Treatment process

Specification

DP-25 DP-31 DP-36 DP-45 DP-53
application Steel
plate
H-BEAM		 2,438Wx100H
300~900H		 3,048Wx100H
300~900H		 3,600Wx100H
300~900H		 4,500Wx100H
300~600H		 5300Wx100H
300~600H
Processing speed 0.5~3.0m/min 0.5~3.0m/min 1.0~3.0m/min 1.0~6.0m/min 1.0~6.0m/min
IMPELLER &
MOTOR		 Ø360x62w
25HPx4SET		 Ø360x62w
30HPx6SET		 Ø520x85w
40HPx8SET		 Ø638x85w
75HPx8SET		 Ø638x85w
75HPx10SET
MOTOR POWER 100HP 180HP 320HP 600HP 750HP
Volume of input 1,200 kg/min 2,160 kg/min 3,840 kg/min 7,200 kg/min 9,000 kg/min
Dust collector device 300㎥/min 350㎥/min 600㎥/min 900㎥/min 1000㎥/min
A/C TOWER 200~250㎥/min 250~300㎥/min 350~400㎥/min 400~480㎥/min 500~550㎥/min

Above application is just an example.
Please consult us for the detailed specifications according to your materials and work conditions.

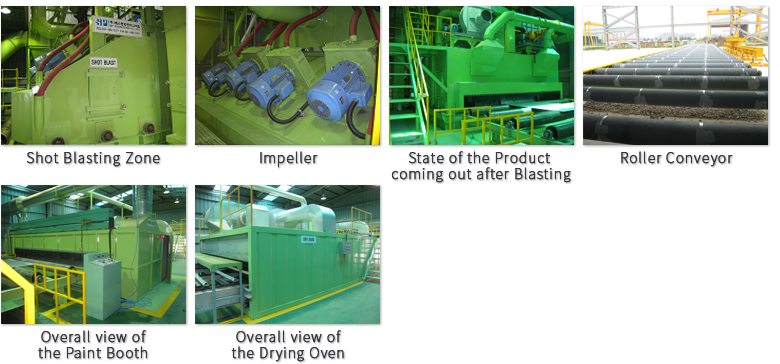

  • Relevant photo-cuts
