SECTION STEEL DESCALING MACHINE
- The machine can be manufactured on a turnkey basis covering pre-treatment, painting and drying which could be required by a customer who wants to meet the strict prevention of environmental pollution.
- Application : Normal steel plates, Shped steel, H-beam
- Applicable size
- Various width such as 4”, 6”, 8”, 10” and etc.
Height: PLATE 4.5t ~ various types of steel structure with height of box type
(It needs to be discussed on the thin plate)

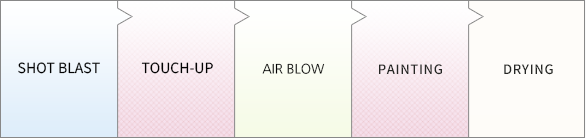

- Treatment process
Specification
|
DPS-2515 |
DPS-3115 |
DPS-3615 |
Applicable size (M) |
MAX) 2.5(W) x 12(L) x 1.5(H) |
MAX) 3.1(W) x 20(L) x 1.5(H) |
MAX) 3.65(W) x 25(L) x 1.5(H) |
Feeding speed |
0.5~5.0m/min |
0.5~5.0m/min |
0.5~5.0m/min |
IMPELLER & MOTOR |
Ø360x62w 30HPx8SET |
Ø360x62w 30HPx10SET |
Ø360x62w 30HPx12SET |
MOTOR POWER |
240HP |
300HP |
360HP |
Input capacity |
2,880kg/min |
3,600kg/min |
4,320kg/min |
Dust collector |
700~1,000㎥/min |
Moving method |
ROLLER CONVEYOR, TROLLEY CONVEYOR, HOIST, CAR |
Above application is just an example.
Please consult us for the detailed specifications according to your materials and work conditions.

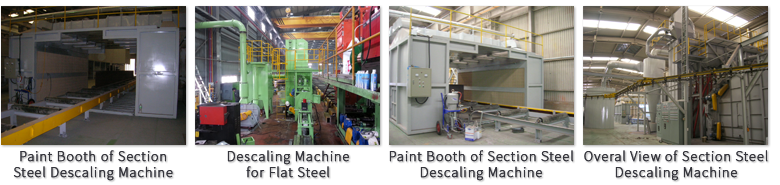

- Relevant photo-cuts
