Automatic Shot Machine for Inside & Outside Diameter Pipe

  • 1) A device that processes the external diameter of a circular product with a long steel pipe by rotating and transferring SKEW or ROLLER – For external diameter.
  • 2) A device that simultaneously processes an internal or external surface by moving a projection device (AIR BLAST nozzle or centrifugal projection device) back and forth while the product is fixed – For internal and external diameter
  • Main specification

    - Diameter : Ø90 ~ Ø3000 mm

    - Processing speed : 0.5 ~ 5 m/min

Specification

  PROCESSING FOR INNER PROCESSING FOR OUTER PROCESSING FOR INNER & OUTER
PROCESSING PRODUCT(M) Φ90~ Φ1,500 Φ1,000~Φ3,000 Φ90~Φ3,000 Φ90~Φ3,000
PROCESSING METHOD AIR BLAST NOZZLE IMPELLER IMPELLER AAIR BLASTNOZZLE
In&outside IMPELLER
PROCESSING SPEED 0.5~5.0m/min 0.5~5.0m/min 0.5~5.0m/min 0.5~5.0m/min
NOZZLE &
IMPELLER		 Ø16 NOZZLE Ø360x62w Ø490x75w Ø360x62w(inside)
Ø490x75w
MOTOR   40HP 50HP 40HP/50HP
Projection volume 180kg/min 480kg/min 600kg/min 1080kg/min
DUST COLLECTOR 300 ~500㎥/min

Above application is just an example.
Please consult us for the detailed specifications according to your materials and work conditions.

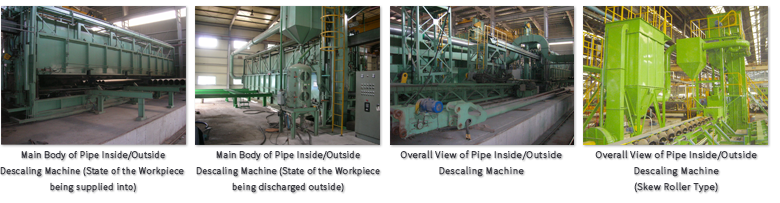

  • Relevant photo-cuts
