Tunnel type automatic shot blast machine

It is a continuous shot machine that projects and processes a huge product while passing through a tunnel using a hanger. (Part which is somewhat complicated and not processed at once can be handled manually in the air blast AIR BLAST TOUCH UP ROOM)
This facility can be continuously processed by installing paint booth and drying furnace on the following line.
Application : Large steel structure, heavy equipment parts, steel bridge

Specification

	TBM-2020	TBM-3232
PROCESSING PRODUCT(M)	MAX) 2.5 (W) x 12 (L) x 1.5 (H)	MAX) 3.2 (W) x 15 (L) x 3.2 (H)
COATED MATTER	H-HEAM, Direct sowing machine, Steel structure	TOWER CRANE, H-BEAM, Steel structure
PROCESSING SPEED	0.5~4.0 m/min	0.5~4.0 m/min
IMPELLER & MOTOR	Ø360x62w 10HPx16SET	Ø360x62w 10HPx20SET
MOTOR POWER	160HP	200HP
VOLUME OF PROJECTION	1,920kg/min	2,400kg/min
DUST COLLECTOR	300~500㎥/min	500~700㎥/min
CONVEYOR TYPE	ROLLER CONNVEYOR, HOIST, TROLLEY CONVEYOR

Above application is just an example.
Please consult us for the detailed specifications according to your materials and work conditions.

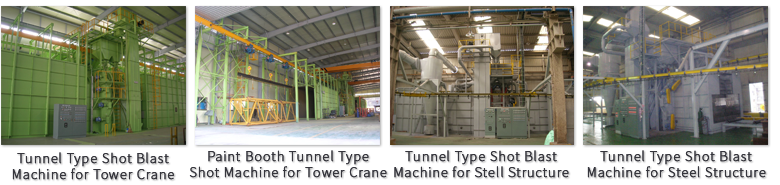

Relevant photo-cuts
